Brief Introduction

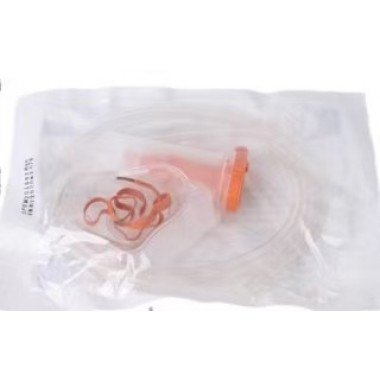

This clinical oxygen jet nebulizer is a core inhalation therapy device matched with oxygen supply systems, widely used for respiratory treatment in hospitals, clinics, emergency rooms and home care. It adopts Venturi jet atomization technology, converting liquid respiratory medication into uniform fine aerosol under oxygen driving. Tiny mist particles can penetrate deep into bronchi and alveoli for efficient drug absorption, relieving symptoms of asthma, bronchitis, COPD and respiratory infection rapidly. Equipped with complete matching accessories for adults and children, single-patient disposable design avoids cross-contamination. Bulk export wholesale and OEM customized packaging are available.

Key Features

1. Venturi Jet Technology, Fine & Even Mist Particles

Professional venturi atomization structure produces aerosol particles of 3–5μm, which can reach lower respiratory tracts and alveoli directly. High lung deposition rate improves drug utilization and shortens treatment duration significantly.

2. Low Residual Medicine Cup, Reduce Drug Waste

Optimized inner circulation baffle minimizes liquid residue after treatment (less than 0.3ml). Max liquid loading capacity up to 8ml, compatible with all common clinical respiratory prescriptions without wall hanging liquid medicine.

3. Complete Matching Accessories for All Age Groups

Standard configuration includes adult mask, pediatric mask and T-type mouthpiece, fully covering therapy demands of infants, kids and adults. Soft transparent masks fit facial contours tightly to prevent mist leakage during inhalation.

4. Standard Universal Oxygen Connector, Wide Compatibility

18mm/22mm dual-spec oxygen inlet adapts to hospital central oxygen supply, portable oxygen cylinders and oxygen concentrators. Stable atomization effect under 6–8 L/min standard oxygen flow rate.

5. Medical-grade Safe Disposable Material

Made of transparent non-toxic PP plastic, free of harmful plasticizers. EO ethylene oxide sterilized, single-patient use effectively blocks cross-infection risk in wards and outpatient departments. Lightweight detachable parts for easy cleaning and replacement.

Specifications

• Product Name: Oxygen Nebulizer for Respiratory Therapy

• Atomization Principle: Oxygen-driven Venturi Jet Nebulization

• Mist Particle Size: 3–5μm

• Recommended Oxygen Flow: 6–8 L/min

• Max Medicine Cup Volume: 8ml

• Supporting Accessories: Adult mask, child mask, T-piece mouthpiece, connecting tube

• Sterilization: EO Ethylene Oxide Sterilized

• Features: High atomization efficiency, low liquid residue, leak-proof, single-use, complete accessories

• Certification: CE, ISO13485, Class I Medical Device

• Packing: Individual sterile blister pack, reinforced moisture-proof export carton

• Shelf Life: 2 Years

Applications

Respiratory inhalation therapy for asthma, bronchitis, rhinitis and COPD; pediatric respiratory ward treatment; postoperative respiratory care; emergency department first aid; home oxygen inhalation treatment; rehabilitation center respiratory management

Wholesale Advantage

We support large-volume export orders, customized mask sizes and private label printing. Complete medical certification documents, strict factory quality inspection and shock-resistant export packaging to meet global medical institution and distributor import standards. well-being.
