- Power Supply: AC 220V / 50Hz; Input Power: 370VA
- LCD Display: 10.1-inch touch screen for real-time display of treatment parameters

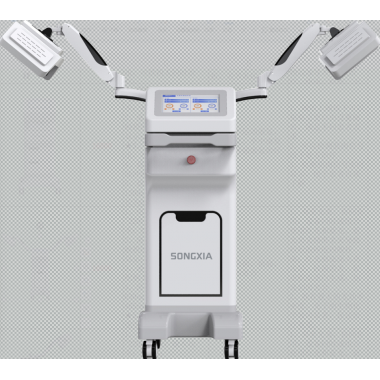

- Channels: Dual-channel, equipped with two large lamp heads
- Wavelength: Red light: 630nm±10nm; Blue light: 465nm±10nm
★5. Irradiance on the surface of irradiation window
a) Red light: Level 1: 120mW/cm², Level 2: 450mW/cm², Level 3: 800mW/cm²; tolerance ±20%
b) Blue light: Level 1: 120mW/cm², Level 2: 500mW/cm², Level 3: 1200mW/cm²; tolerance ±20%
c) Mixed light: Level 1: 240mW/cm², Level 2: 950mW/cm², Level 3: 1900mW/cm²; tolerance ±20%
★6. Irradiance on effective irradiation area
a) Red light: Level 1: 40mW/cm², Level 2: 80mW/cm², Level 3: 120mW/cm²; tolerance ±20%
b) Blue light: Level 1: 50mW/cm², Level 2: 100mW/cm², Level 3: 150mW/cm²; tolerance ±20%
c) Mixed light: Level 1: 90mW/cm², Level 2: 180mW/cm², Level 3: 270mW/cm²; tolerance ±20%
- Uniformity of effective irradiance shall be greater than 0.4
- Instability of effective irradiance shall not exceed ±10%
- Radiation spectrum:
The ratio of irradiance within 600nm～760nm to irradiance within 200nm～1400nm shall be no less than 0.8
- Timer
a) Adjustable from 5min～60min with 5min step increment, tolerance ±2%. The device will stop working immediately and trigger an audible alert once treatment completes.
b) Manual light output stop function available.
★11. Temperature monitoring & over-temperature protection
a) The device monitors temperature of effective irradiation area. Monitoring range: 10℃～50℃, tolerance ±3℃
b) Over-temperature protection: When the temperature of effective irradiation area exceeds 42℃, the device shall cut off light output immediately and cannot resume automatically.
- Cooling system
a) Cooling method: Fan cooling
b) The fan starts automatically when the lamp head is working to cool the light source.
Provides anti-inflammatory, bactericidal and pain-relieving effects to accelerate wound healing.
- Dual-light synergistic therapy: red & blue light available separately or combined
- Blue light kills Propionibacterium acnes for acne; red light penetrates dermis, boosts collagen, reduces inflammation & speeds wound healing
- High optical power density with strong photobiochemical effects for consistent treatment results
- Multi-indication application: acne, herpes zoster, skin ulcers, dermatitis and eczema
- High-power semiconductor light source with specific wavelengths to act on subcutaneous tissue
- Adjustable irradiation head & multi-axis arm for precise positioning, comfortable treatment
