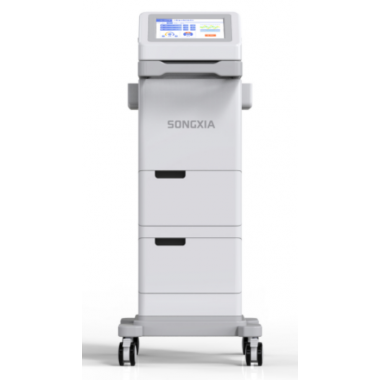

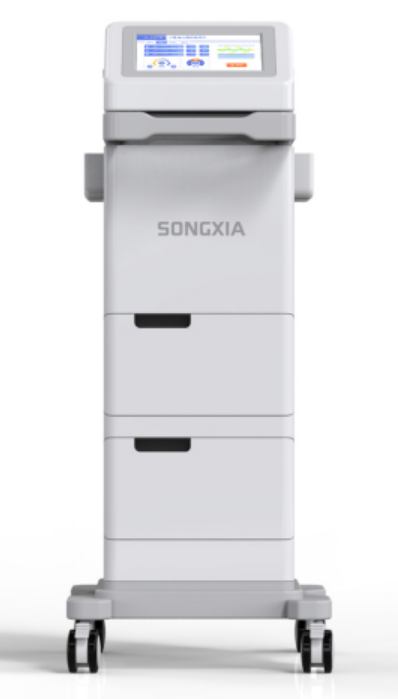

TCM Directed Transdermal Drug Delivery Therapy Device

  • Purchase Qty: 1
  • Unit: Vial(s)
  • Fob Unit Price: US $3771.43
  • Payment Terms:L/C , T/T
  • Favorite
Yunnan Original Color Biomedical Technology Co., Ltd.

Business Type:Trader

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

  • Certification:CE
  • Place of Origin:China
  • Warranty:10 years

Description

  1. Power Supply: AC 220V / 50Hz; Input Power: 100VA
  2. LCD Display: 10.1-inch touch screen for real-time display of treatment parameters
  3. Output Channels: 4-channel output, supports simultaneous treatment for 4 patients
  4. Carrier Frequency: Adjustable from 1250Hz to 4000Hz
  5. Carrier Waveform: Asymmetric pulse wave in drug delivery mode; symmetric pulse wave in massage mode
  6. Modulation Waveforms: Square wave, spike wave, triangular wave, trapezoidal wave, exponential wave, sine wave and sawtooth wave
  7. Output Amplitude: 99 adjustable levels; maximum output amplitude: 50V, tolerance ±10%
  8. Modulation Depth: 100%, 75%, 50%, 25%; tolerance ±5%
  9. Modulation Frequency: 0.5Hz～150Hz
  10. DC Component: At maximum output under 500Ω non-inductive load resistance, DC component in drug delivery mode ＜20V
  11. Output Current: Under 500Ω non-inductive load resistance, output current ＜80mA (r.m.s) for massage mode and ＜50mA (r.m.s) for drug delivery mode
  12. Continuous Working Time: ≥4 hours
  13. Timer: Adjustable range 5min～60min, default 20min, step size 5min, tolerance ±30s
  14. Treatment Protocols: 16 drug delivery protocols and 16 massage protocols
  15. Temperature Adjustment: 13 adjustable levels, range 40℃～53℃, 1℃ step, tolerance ±3℃. Max surface temperature of electrode pad ≤60℃. Protection unit cuts off thermal power supply when temperature exceeds 60℃.
  16. Temperature Protection: Dual temperature protection units for real-time temperature monitoring and control
  17. Intellectual Property: Owns design patent
  • Transdermal drug delivery therapy
  • Scapulohumeral periarthritis, cervical spondylosis, low back & leg pain, osteoarticular rheumatism, sciatica, soft tissue injury
  • Pediatric conditions: infantile diarrhea, pediatric pneumonia, cough from respiratory infection, pediatric allergic asthma
  • Colitis, intestinal adhesion, appendicitis, proctitis, diarrhea, abdominal distension, acute & chronic gastroenteritis
  • Gynecological disorders: dysmenorrhea, irregular menstruation, pelvic inflammatory disease, adnexitis, cervicitis, sequelae after ligation
