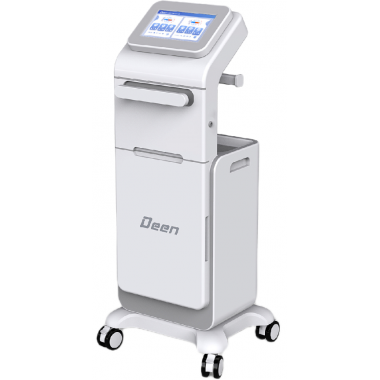

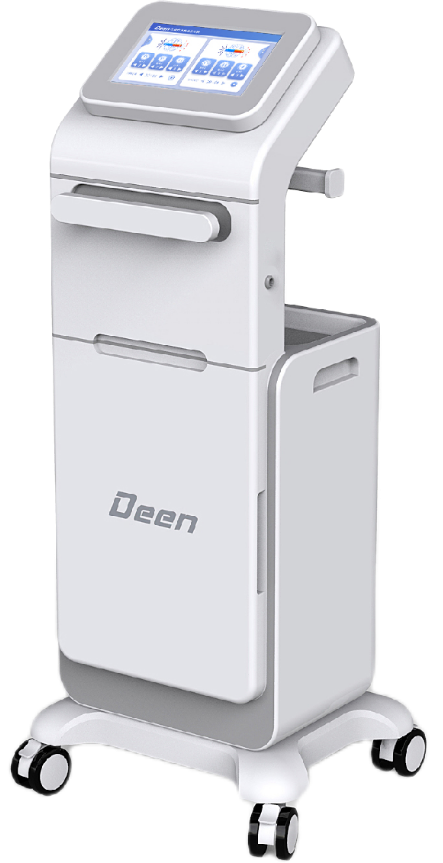

Low-frequency Alternating Magnetic Field Therapy Device

  • Purchase Qty: 1
  • Unit: Vial(s)
  • Fob Unit Price: US $5485.71
  • Payment Terms:L/C , T/T
  • Favorite
Yunnan Original Color Biomedical Technology Co., Ltd.

Business Type:Trader

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

  • Certification:CE
  • Place of Origin:China
  • Warranty:6 years

Description

  • 10.1-inch touchscreen, real-time display of treatment parameters
  • Dual magnetotherapy channels
  • 2 magnetic intensity levels: low (3–9mT) / high (10–17mT), 50Hz alternating magnetic field
  • Built-in vibration function: 3 intensity levels & 3 frequency levels optional
  • Timer: 10–30 min, default 20 min, 5 min adjustment step
  • Strict magnetic field safety design; magnetic strength drops below 0.5mT beyond 20mm from applicator

  • Stable working performance under standard clinical environment

  • Display: 10.1-inch touch screen for real-time display of treatment parameters
  • Power Supply: AC 220V / 50Hz
  • Input Power: 60VA
  • Timer: Adjustable range 10–30 min, step increment/decrement 5 min. Default setting: 20 min upon power-on. Timing error ≤ ±10%.
  • Function Channels: 2 magnetotherapy channels
  • Magnetotherapy Function:
  • Two levels of maximum magnetic therapy intensity: Low level 3mT～9mT, High level 10mT～17mT. Magnetic field frequency: 50Hz±1Hz. (The safety distance where the ambient safe magnetic field limit of 0.5mT is reached is 20mm from the top of the magnetic applicator. The output magnetic field of this instrument is distributed within a cylindrical area of approx. 20mm diameter. At a distance of about 20mm away from the magnetic applicator, magnetic field strength falls below 0.5 mT.)

  • Vibration Function:

  • 3 adjustable vibration intensity levels: Low, Medium, High. Corresponding peak-to-peak drive voltage pulses: 4V, 8V, 27V, tolerance ±10%.
  • 3 adjustable vibration frequency levels: Low, Medium, High. Corresponding frequencies: 2Hz, 5Hz, 10Hz, tolerance ±10%.
  • Normal Operating Conditions Operating environment: Temperature 5℃～40℃; Relative humidity: 10%～80% Atmospheric pressure: 700hPa～1060hPa Power supply voltage: AC 220V±10%; Power frequency: 50Hz±1Hz
