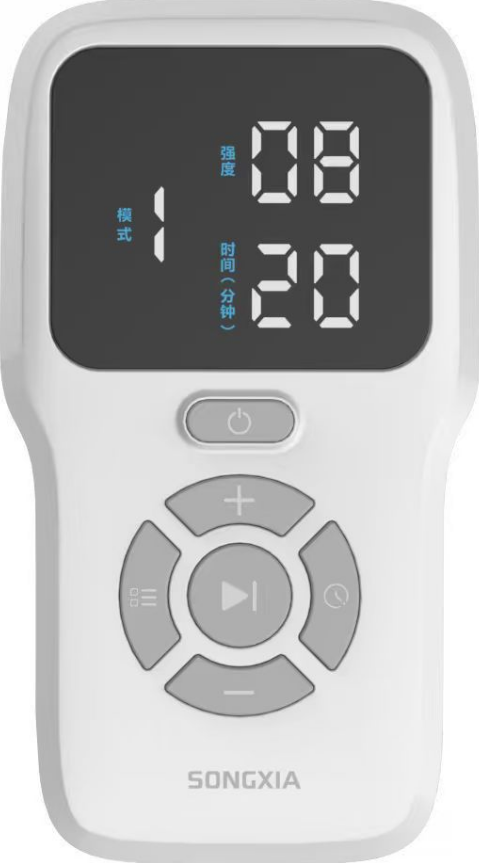

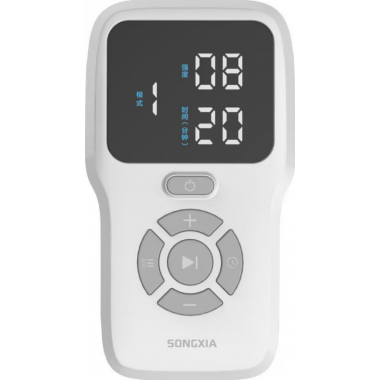

Transcranial Pulsed Electric Sleep Therapy Device

  • Purchase Qty: 1
  • Unit: Vial(s)
  • Fob Unit Price: US $210
  • Payment Terms:L/C , T/T
  • Favorite
Yunnan Original Color Biomedical Technology Co., Ltd.

Business Type:Trader

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

  • Certification:CE
  • Place of Origin:China
  • Warranty:6 years

Description

Technical Specifications
  1. Main Unit Dimensions: L 137mm × W 76mm × H 24mm
  2. Rated Input Current: 0.5A
  3. Stimulation waveform: Bidirectional symmetrical square wave
  4. Pulse width: 500μs, 0.5s, 1.0s; tolerance ±10%
  5. Pulse period & operating frequency:
  • At pulse width 500μs: pulse period 10ms, operating frequency 100Hz
  • At pulse width 0.5s: pulse period 2.0s, operating frequency 0.5Hz
  • At pulse width 1.0s: pulse period 4.0s, operating frequency 0.25Hz Tolerance ±10%
  1. Output amplitude: 0～10 adjustable levels, step of 1 level. Max peak output voltage:5.5V, tolerance ±10%
  2. Maximum RMS output current: 2.8mA, tolerance ±10%
  3. Modulation depth of modulation waveform: 100%, tolerance ±5%
  4. Zero DC component at output
  5. Therapy Modes: 9 built-in modes divided into 3 categories: Relaxation, Soothing & Sleep-promoting Relaxation: Relaxation I, Relaxation II Soothing: Soothing I, Soothing II Sleep-promoting: Sleep I, Sleep II, Sleep III, Sleep IV, Sleep V
  6. Burst modulation waveform: square wave
  7. Timer: Adjustable 10–60min, step 10min, tolerance ±5%
  8. Continuous working time: ≥4 hours
  9. Operating noise ≤60dB(A)
  10. Physical adjustment: External keys for current adjustment
  11. Display: LED indicator
  12. Sound: Buzzer
  13. Weight: ≤150g
  14. Impedance of surface electrodes for nerve & muscle stimulator ≤1Ω at 400Hz
  15. Surface electrodes for nerve and muscle stimulator with Medical Device Filing Certificate
  16. Internal battery: DC 3.7V, 1000mAh
  17. Power input: AC 220V, 50Hz±1Hz; Output DC 5V
  18. Certified by NMPA
  19. Protection functions: Over-current & over-voltage protection
  20. Passed EMC, performance and safety tests
  21. Principle description: The transcranial pulsed electric sleep therapy device delivers micro-current with special waveform to central nervous system via a pair of ear-clip electrodes. It helps regulate brain neurotransmitters related to mood, modulate brain waves for adjuvant improvement of insomnia symptoms.
