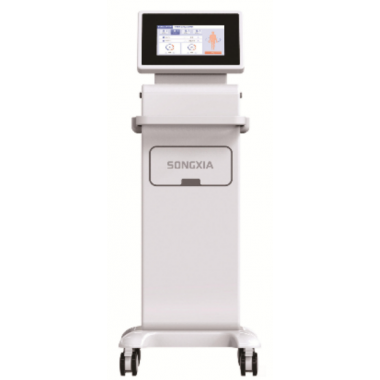

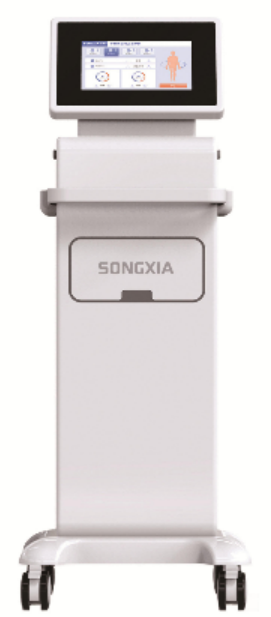

Medium Frequency Gastrointestinal Motility Therapy Device

  • Purchase Qty: 1
  • Unit: Vial(s)
  • Fob Unit Price: US $5485.71
  • Payment Terms:L/C , T/T
  • Favorite
Yunnan Original Color Biomedical Technology Co., Ltd.

Business Type:Trader

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

  • Certification:CE
  • Place of Origin:China
  • Warranty:8 years

Description

Technical Specifications
  1. Power Supply: AC 220V / 50Hz; Input Power: 25VA
  2. LCD Display: 10.1-inch touch screen, real-time display of treatment parameters
  3. Operating Carrier Frequency: 2kHz~6kHz, step 1kHz, tolerance ±10%
  4. Output Amplitude: Continuously adjustable 0~27V, tolerance ±10%
  5. Carrier Waveform: Bidirectional square wave
  6. Pulse width: Pulse width corresponding to each carrier frequency is shown in Table 1, tolerance ±10%.
  7. Medium-frequency modulation waveforms: sine wave, square wave, triangular wave, spike wave, exponential wave, sawtooth wave, constant-amplitude wave, trapezoidal wave
  8. Modulation depth: 0%, 33%, 14%, 100%, tolerance ±5%
  9. Output Current: Continuously adjustable. Under load of 500Ω±10%, maximum output current: 42mA, tolerance ±10%
  10. Output Current Stability: The variation rate of output current under different loads shall not exceed 10%
  11. Modulation Frequency Range: 0.25~138Hz
  12. Timer: Adjustable from 1~99 min, step 1 min, default setting 30 min, tolerance ±30s. Audible alert upon completion of treatment.
  13. Continuous Working Time: ≥4 hours
  14. Treatment Protocols: Within 2kHz~6kHz, 20 medium-frequency therapy protocols for each single frequency
  15. Output Intensity: 50 adjustable intensity levels for each protocol, with quick adjustment keys
  • Adjuvant therapy for gastrointestinal discomfort: dyspepsia, stomachache, abdominal distension, gastric hypomotility, irritable bowel syndrome, habitual constipation and postoperative exhaust
  • Relieve nausea, vomiting, obstruction and constipation caused by gastrointestinal mucosal injury for chemo/radiotherapy patients
  • Widely used in gastroenterology, rehabilitation, oncology, neurosurgery and orthopedics for long-term bedridden postoperative patients
  1. Curated protocols: Expert-developed therapy protocols. Medical staff can select freely according to clinical requirements to meet personalized and diverse treatment demands of patients.
  2. Intelligent system: Dynamic multi-interactive system, supporting protocol display for multiple patients under simultaneous treatment and improving clinical service efficiency.
  3. Intelligent system: Dynamic multi-interactive system, supporting protocol display for multiple patients under simultaneous treatment and improving clinical service efficiency.
